Model: 2AM-AG40

2AM – Air Motor 2AM
AG40 – AG (= standard version), 40 Liter

Technical Specifications

Design: air-operated (air motor), direct drive
Impeller: 1 x propeller (3-blade, 126mm)
Container Capacity: 40-80 liter
Motor Power: 3/4 HP [0.56kW]
Speed: 300-3,000 RPM
Air Pressure (max.): 7 bar [100 PSI]

Features

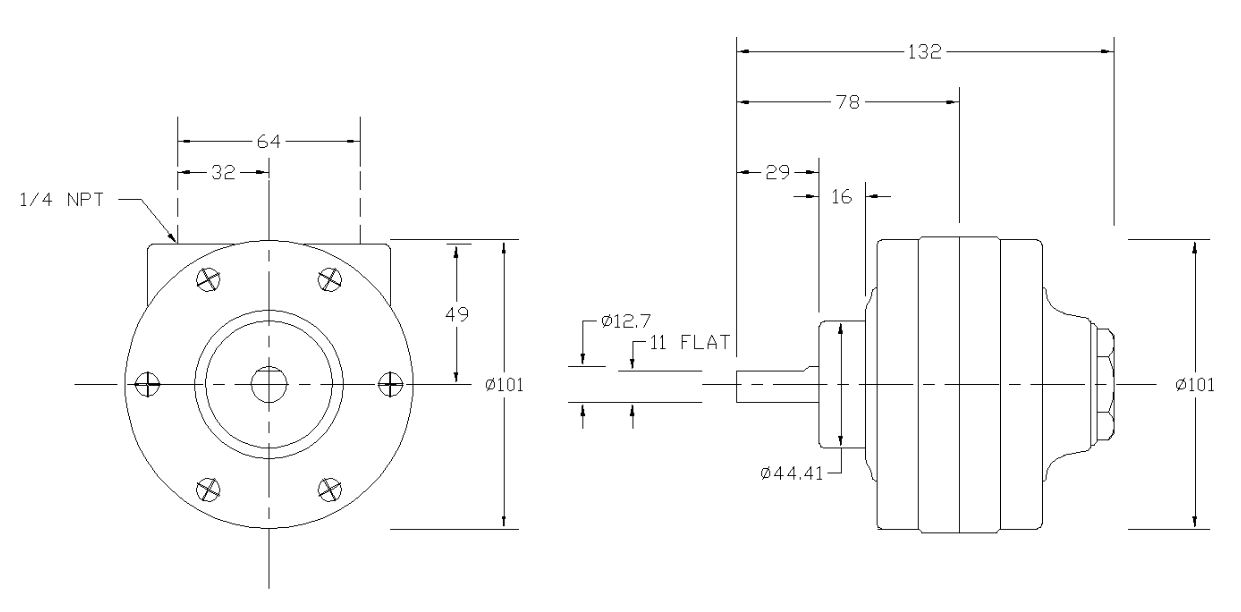

The 2AM-AG40 has a light but very powerful 3/4HP air motor. This agitator is also the basic version for the handheld agitator 2AM-HDS40 (‘quick mixer’). If not used as a handheld mixer, the agitator can be connected to any customer flange, stand or tank via the round 44.4 mm round flange of the air motor (see drawing here).

Applications

This explosion-proof air agitator is used for the mixing/stirring of various fluids (40 to 80 liter).
