Binks Trophy Automatic Spray Gun

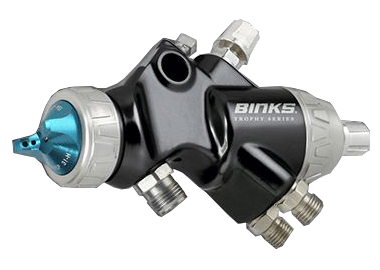

Binks Trophy Automatic Spray Gun (source: Binks)
Contents
Part No.: 3465-AABB–CCDE
3465 – Trophy series, automatic
AA – nozzle size (e.g. 12 = 1.2mm)
BB – Atomization Technology (CN=Conventional, LV=LVMP, HV=HVLP)
CC – Air cap number (e.g. 32)
D– Needle material (S=Stainless, V= Tungsten Carbide, P=Plastic)
E – (for future use)
Technical Specification
Gun Body: Anodized aluminum
Fluid Path: Stainless steel
Weight: 590 g
Air Supply Connection: 1/4″ NPS / BSP (m)
Fluid Supply Connection: 3/8″ NPS / BSP (m)
Fluid Tip/Nozzle
Range: 0.5-2.6 mm
Material Options: Stainless Steel, Plastic, Tungsten Carbide (1.4, 1.8, 2.2, 2.6 mm)
Air Cap
Atomization Technique: HVLP, LVMP, Conventional
Air Cap Selection Guide: see chart
| Air Cap No. | Atomizing Technology | Spray Pattern (inch/mm) |
| 11 | Conventional | 8–12″ [200-305 mm] |
| 12 | Conventional | 4 – 12″ [100-305 mm] |
| 14 | Conventional | 8 – 14″ [200-355 mm] |
| 22 | LVMP | 4 – 12″ [100-305 mm] |
| 23 | LVMP | 4 – 12″ [100-305 mm] |
| 24 | LVMP | 2 – 6” [50-150 mm] |
| 25 | LVMP | 4 – 15” [100-380 mm] |
| 31 | HVLP | 8 – 12″ [200-305 mm] |
| 32 | HVLP | 8 – 18″ [200-460 mm] |
| 33 | HVLP | 8 – 12″ [200-305 mm] |
| 39 | HVLP | 4 – 12″ [100-305 mm] |
| 16 | (round spray) | 2 – 4″ [50-100 mm] |
Features
The Binks Trophy Automatic Spray Gun is designed to work as HVLP, LVMP or conventional spray gun, i.e. three different atomization technologies can be used on the same gun depending on the employed air cap. The gun is equipped with stainless steel fluid passages and therefore suitable for a wide range of coating materials, including waterbased and solvent based. Nozzles and needles are available in the range of 0.5 to 2.6 mm in hardened stainless steel (standard) and plastic (for very thin materials including NGR stains). Tungsten carbide nozzles/needles are available in the sizes 1.4, 1.8, 2.2 and 2.6 mm (for abrasive materials including porcelain/ceramics).
Other special features
- One stainless steel needle for all fluid nozzles (reduces inventory)
- Needle seal cartridge assembly can be removed as one complete assembly (easy maintenance)
- The “Universal” threads for air and fluid, i.e. the threads are suitable for both BSP and NPS connectors.
Applications
wide range of paints, coatings, dyes, stains, glazes and lacquers in wood, metal, plastic and other applications.
Service Manual
Binks Trophy Automatic Spray Gun (pdf, source: manualzz)
